Name: CutiePie Dual Stagger Hotswap PCB
SKU: 200
Availability: InStock

CutiePie Dual Stagger Hotswap PCB

Uniform and standard stagger hotswap board created by Baconspoon, which was an update of the original Cutiepie by Flamwenco. 3D Printed case files are available in the GitHub Repository. 10.5U keyboard. Offers the uniform 0.25u stagger offered with the original cutiepie and a traditional 0.5u stagger between the “A” and “Z” row. No ISO Enter […]

Printed Case

Clear

Description

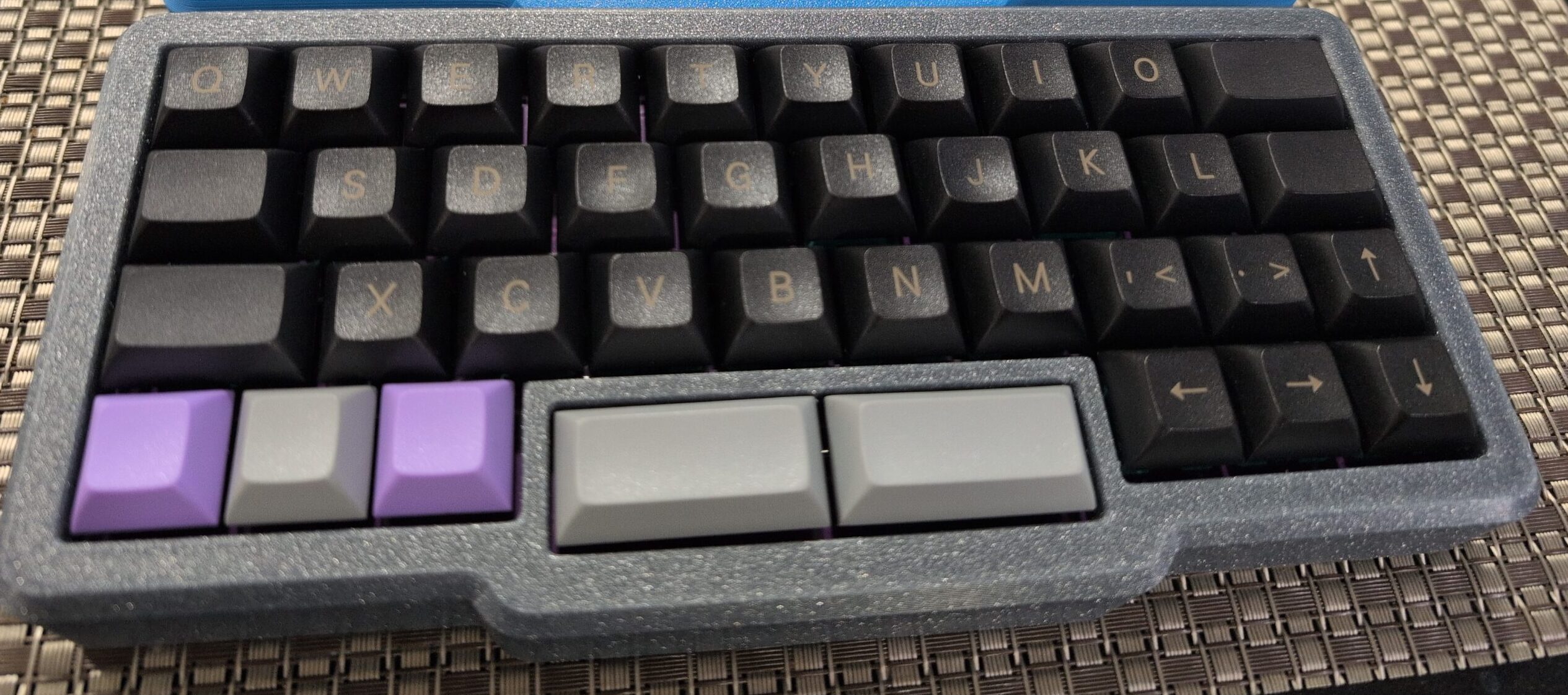

Uniform and standard stagger hotswap board created by Baconspoon, which was an update of the original Cutiepie by Flamwenco.

3D Printed case files are available in the GitHub Repository.

10.5U keyboard.

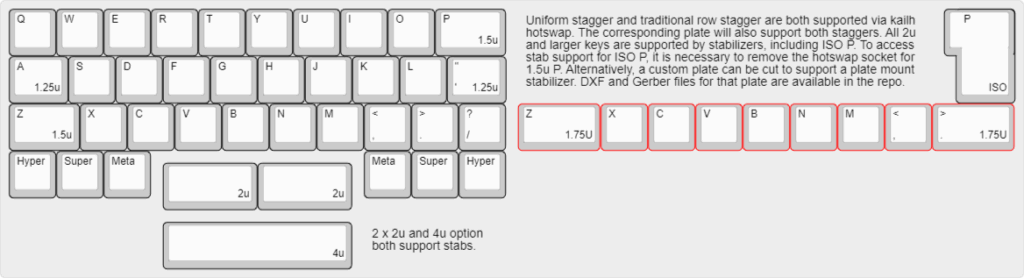

Offers the uniform 0.25u stagger offered with the original cutiepie and a traditional 0.5u stagger between the “A” and “Z” row.
No ISO Enter Support
Integrated RP2040
Support for both 2u x 2 and 4u stabilizers.
FR4 Plate included, but 3D Print plate files
Not included:
- Daughterboard and connecting cable are not included.
- Keycaps
- 3D Printed Case (will print one on demand. Price dependent on filament type)
Tested and ensured to be in working order prior to shipping.
