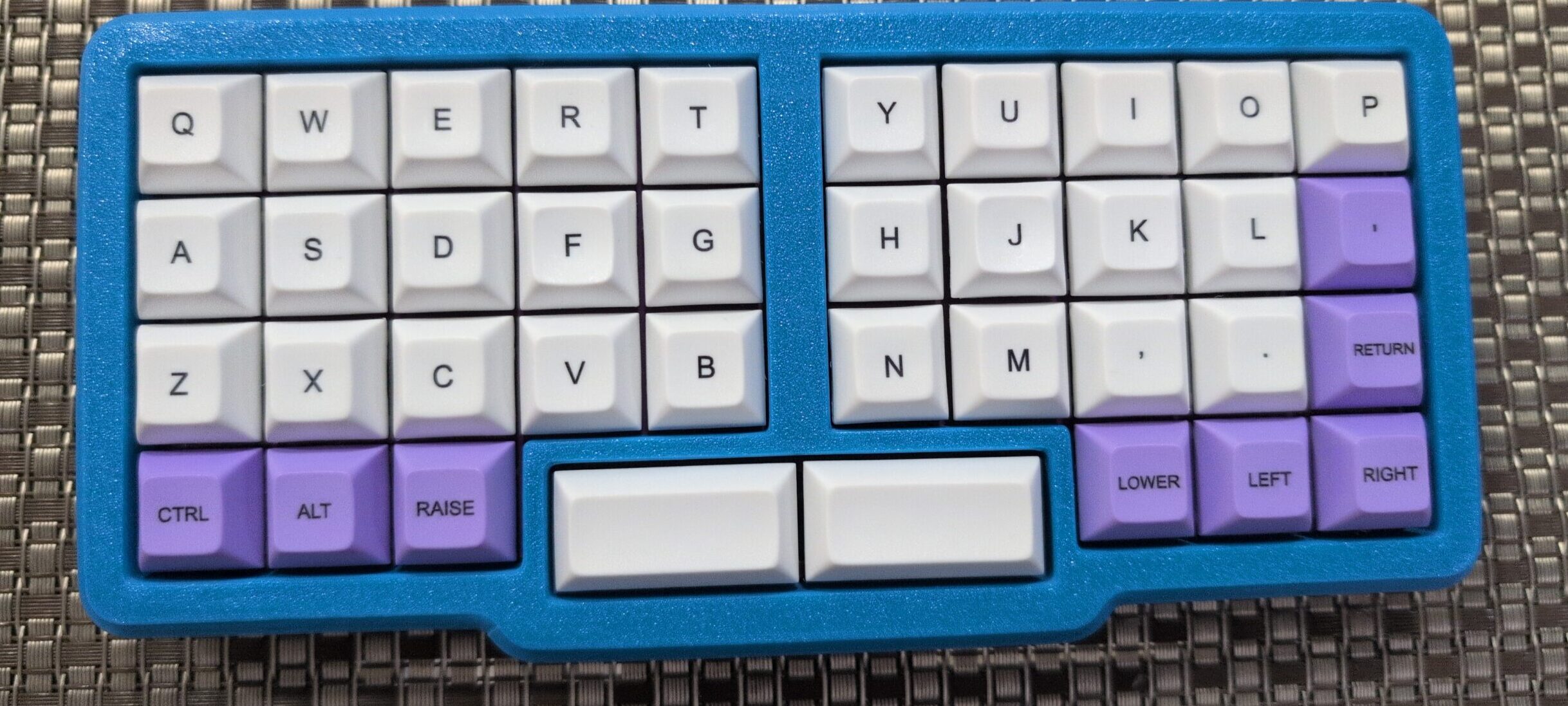

OrthoPie HotSwap Solder PCB

Description

Ortho hotswap board created by Baconspoon, which was an update of the original Ortho Cutiepie by Flamwenco.

3D Printed case files are available in the GitHub Repository.

• 10.5U keyboard.

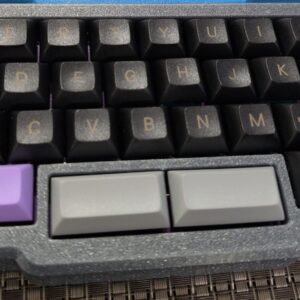

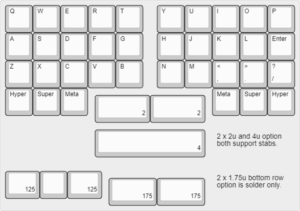

• Supports 2x2u, 4u, and 2×1.75u spacebar layouts from original Flamwenco orthopie design.
• 2×1.75u spacebar layout is solder only and requires the removal of a breakaway tab to fit the appropriate case.
• Support for both 2u x 2 and 4u stabilizers.
• All supported layouts can be soldered. Soldered switches will be north-facing. Hotswap sockets are south-facing.
• FR4 Plate included, but 3D Print plate files
• Daughterboard and connecting cable is included.
• Not included:
  • Keycaps
  • 3D Printed Case (will print one on demand. Price dependent on filament type).
• Tested and ensured to be in working order prior to shipping.
